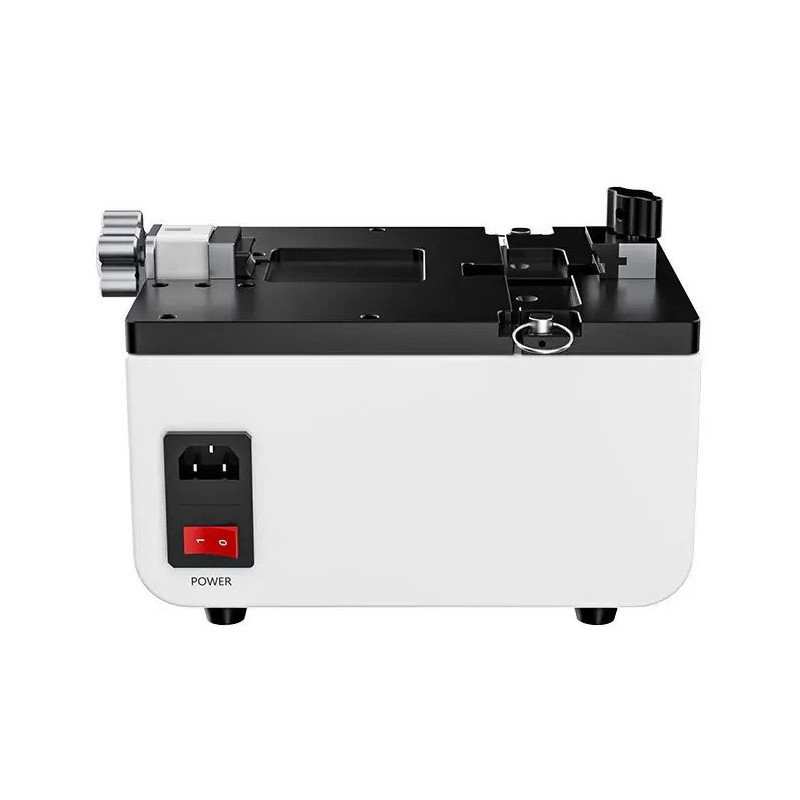

TBK-207 Air-tightness tester - IP68 Lightness check for smartphones with vacuum & overprint test

Product description (Listing):

The TBK 207 is an intelligent Air-tightness and water traceability tester For smartphones and mobile devices. It was specially designed to reliably check after repairs, whether the Ip68 seal It is also guaranteed. Ideal for professional workshops who want to offer their customers a safe and comprehensible leak test.

Thanks PLC automatiksteuerung, High-precision sensor and intuitive High-definition touchscreen Allows the device a simple one-button operation and provides clear well / bad results. The combination Vacuum (negative pressure) and Überdruckprüfung Allows comprehensive analysis as well as the targeted finding of possible leaks.

🔧 Features & Benefits

Precise airtight test

• Underpressure (vacuum) to check the general tightness

• Overpressure for targeted localization of leaks

Several operating modes

• Vakuummodus

• Überdruckmodus

• Fully automatic combination mode

PLC automatiksteuerung

• Intelligent, automated test system

• Simple one-button operation

High-precision sensor

• Imported pressure sensor

• Accuracy of ± 0.1 kPa

High-definition touchscreen

• Display of real-time pressure values

• Countdown timer

• Clear passport / fail evaluation

Adjustable work platform

• Multidirectionally adjustable

• Suitable for different smartphone models

Sicherheitsdruckbegrenzung

• Adjustable maximum pressure

• Protection against damage to the device

Compact & portable

• Space-saving design

• Ideal for every repair plant bench

📊 Technical data

• Brand: TBK

• Model: 207

• Control system: PLC automatic

• Voltage: 220 V

• Power: 20 W

• Pressure range: -40 ~ 20 kPa

• Sorry inaccuracy: ± 0.1 kPa

• Supported test: IP68 standard

• Product size: 200 × 180 × 140 mm

• Packing size: 220 × 200 × 160 mm

• Net weight: 2.8 kg

• Gross weight: 3.2 kg

Perfect for:
Smartphone repair shops, quality control according to display or backcover exchange and professional leak test according to IP68 standard.
