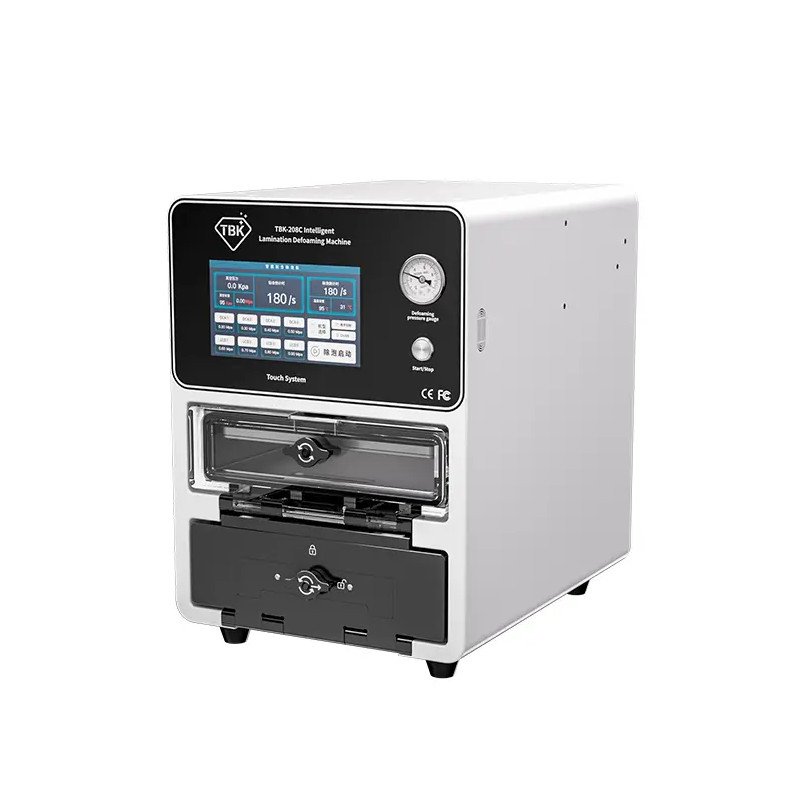

TBK-208C 2-in-1 OCA laminating and blowing machine up to 15 inches for mobile phone and tablet

Description:
The TBK-208C is a professional 2-in-1 OCA machine for laminating and removing air bubbles in smartphone and tablet displays. The large work chamber is suitable for flat and curved mobile phone displays as well as for tablets up to 15 inches.

The intelligent touchscreen system, active pressure control and preset programs enable a controlled and efficient workflow in repair shops, refurbishment operations and training centers.

Highlights:
🔧 2-in-1 function: OCA lamination and blowing in a device
📱 Suitable for flat and curved smartphone displays
🖥️ Large work chamber for tablets and displays up to 15 inches
🎛️ Intelligent touchscreen control system with preset programs
📊 Active print detection and pressure control for controlled workflows
💨 Integrated brand vacuum pump for stable vacuum performance
⚙️ 125 mm printing cylinder with four guide rods for uniform contact pressure
🧱 One-piece aluminum chamber for good sealing and long-lasting use
🔒 Safety sensor prevents operation with the door not completely closed
🛠️ Suitable for professional workshop and production operation

Technical data:

• Brand: TBK
• Model: 208C
• Product Type: 2-in-1 OCA Laminating and blowing machine
• Functions: laminating and blow
• Maximum display size: up to 15 inches
• Voltage: 220 V
• Power: 500 W
• Noise level: 1-50 dB
• Dimensions work chamber: 240 × 320 × 50 mm
• Product dimensions: 410 × 310 × 420 mm
• Net weight: 37.4 kg
• Packaging dimensions: 440 × 340 × 450 mm
• Gross weight: 50 kg
• Pressure cylinder: 125 mm
• Leadership: 4 guide rods
• Control: Touch screen with active pressure control
• Housing / chamber: one-piece aluminum construction
• Safety function: Inductive door sensor
• Warranty: 1 year
• Support: Long-term technical support

Application / applications:
Suitable for OCA display lamination, removal of air bubbles, smartphone and tablet display repair and LCD reefbishman. Ideal for mobile phone repair workshops, repair companies, refurbishment centers and technical training facilities.

Delivery:
1 x TBK-208C 2-in-1 OCA Laminating and blowing machine

Example Articles:

Vacuum pump (should be at least as strong): https://eur.vevor.com/vacuum-pump-c_11109/10cfm-2-stages-1hp-refrigerant-vacuum-pump-254-l-m-dual-stage-ac-p_010308640844

Air pump: https://www.cncest.de/products/leise-lfreie-luftpumpe-luftkompressorkopf-kleiner-luftpumpenkopfmotor-800-w?gad_source=1&gad_campaignid=17417045244&gbraid=0AAAAABK8yIG46DATF-soKIOuACD4FGpRj&gclid=Cj0KCQjw94bTBhDQARIsAN3vv0w9zqKjnHFwpy9y3__JRCJS2jqQdURcE9moD_OxDhDj6J_vhfcxUGcaAhzdEALw_wcB

Adapter: https://vacuumchambers.eu/en_us/p/fitting-14-sae-flare-to-barb-for-8mm-hose/19

Schlauchschelle: https://www.bauhaus.info/installationszubehoer/schlauchschelle/p/22628877?utm_source=chatgpt.com
